Dock Lifts

Dock Lifts – Hydraulic Dock Lifts

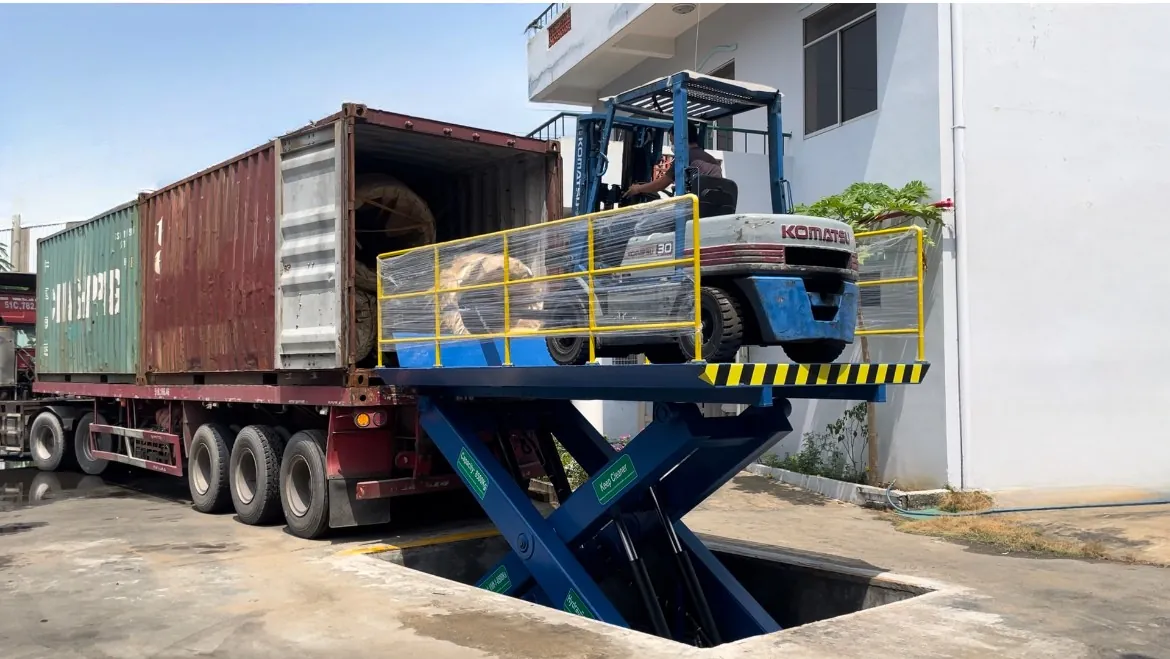

Dock lifts provide full vertical travel to bridge height gaps between ground, trucks, and warehouse floors—ideal when truck heights vary or ground-to-dock transfer is needed.

Why choose dock lifts

True height flexibility (up to ~1.65 m or more)
Safer, faster loading for forklifts/pallet jacks
Pit-mounted flush or surface-mounted with ramp

Key features

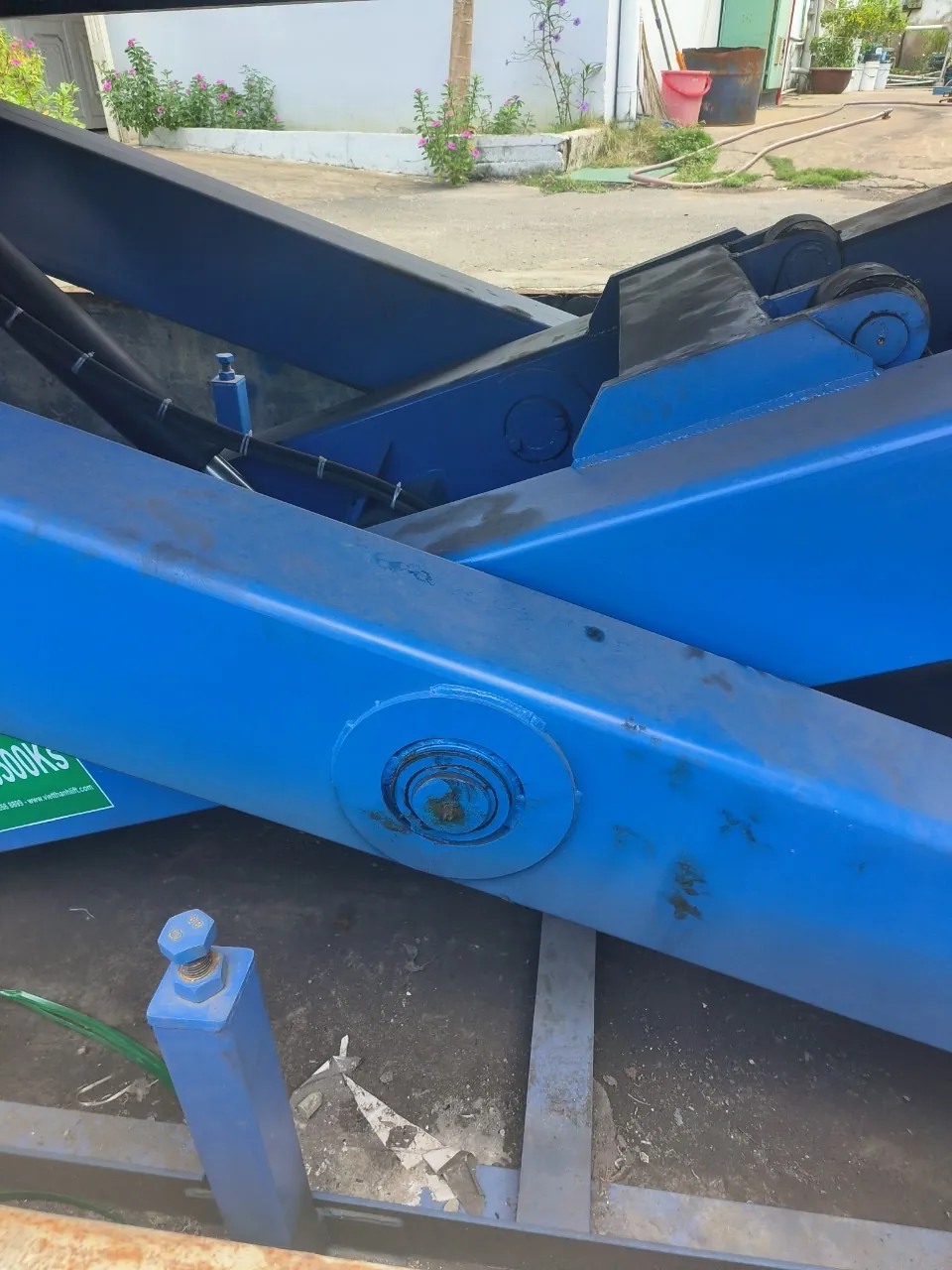

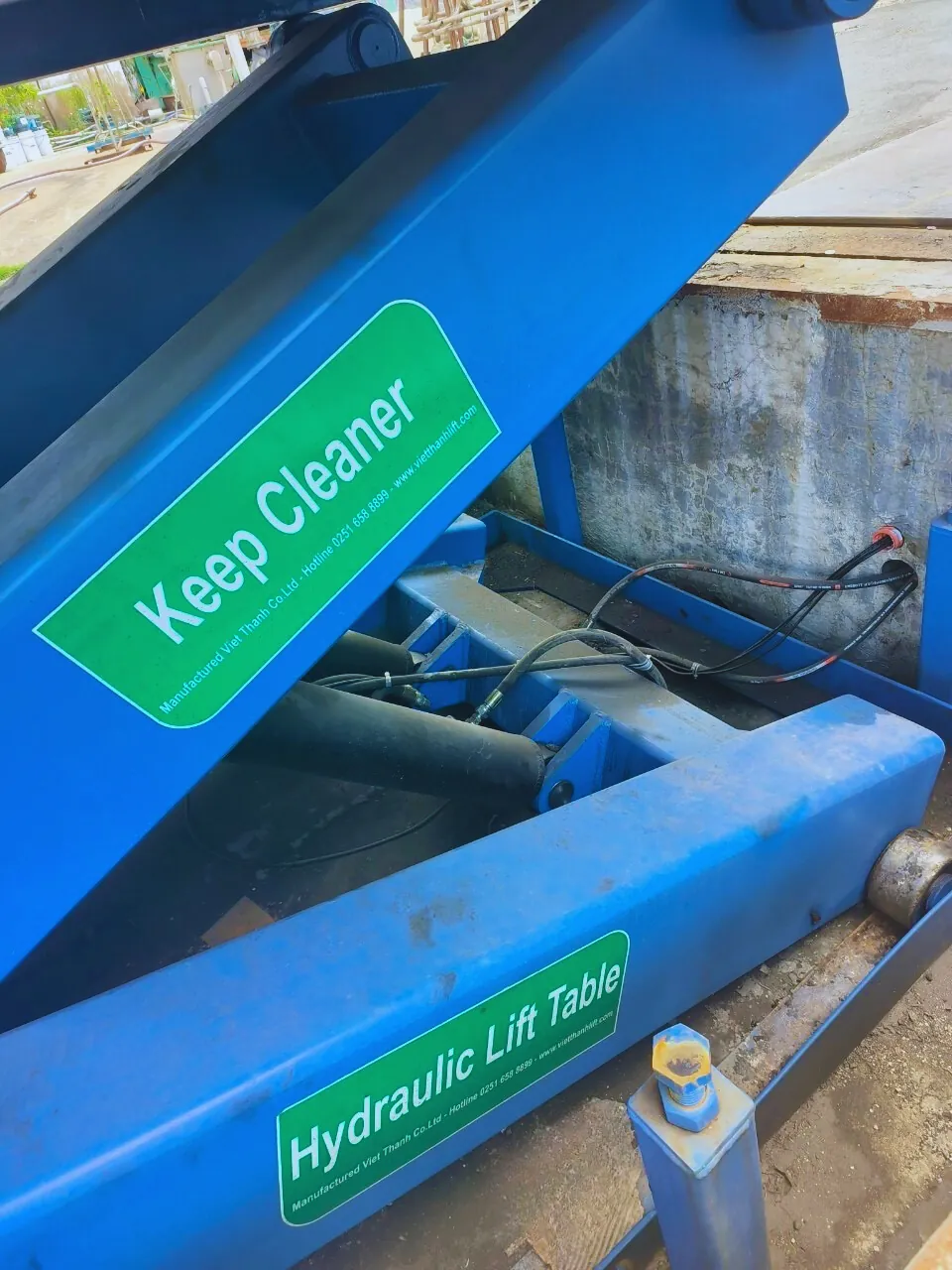

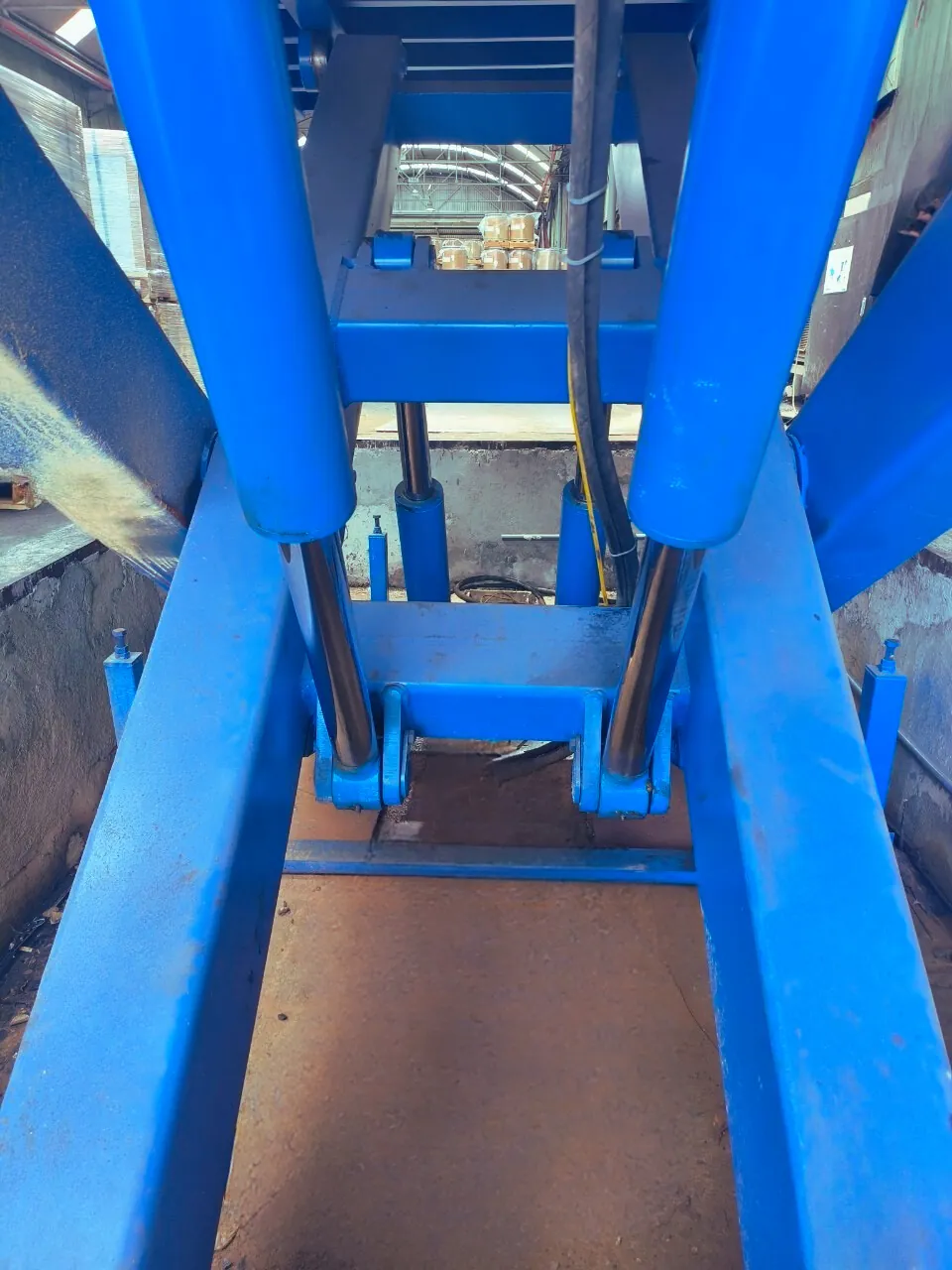

Heavy-duty scissor structure, anti-slip deck
Safety set: toe guards, hose-burst valve, maintenance prop, E-stop
Smooth power pack, low-noise hydraulics
24 V controls, IP-rated pendant/wall station
Durable finish; galvanized/outdoor coating optional

Specifications

Model	Vlift-1-2000KB	Vlift-1-3TS	Vlift-1-6TS
Dimension ( L x W )	2500 x 1500	2000 x 3000	2000 x 4000
Lowered	450	500	750
Raised Height	2100	2150	2400
Capacity	2 tons	3 tons	6 tons
Net weight	1,080Kg	1,850Kg	2,980kg
Motor Power	3kW -3phase-380V-50Hz	3.5kw-3phase-380V-50Hz	5.5kw-3phase-380V-50Hz
We can customize the electric motor to meet the requirements of each market

Options

Handrails/gates, flip-over bridge plate, roller-stop, dock lights, alarms, stainless hardware, low-temp oil.

How to specify

Tell us capacity, platform size, travel, mounting (pit/surface), power supply, and required options for a fast quote.

(Designed with the safety principles of ANSI MH29.1 and general OSHA machine-safety practices.)

Customization & Services

Viet Thanh provides OEM/ODM solutions, allowing clients to customize platform size, load capacity, and color. We also offer knock-down designs to reduce shipping costs, along with professional installation, maintenance, and warranty services.

Choose Viet Thanh Dock Lifts – the reliable choice for safe, fast, and efficient cargo handling in your warehouse and logistics operations
